Multi-layer PCBs
A multilayer PCB will, by definition, have 3 or more conductive copper layers, each separated from the others using either fully cured core material, or partially cured prepreg material. The application of heat and pressure in the bonding press fully cures the prepreg material to create the finished multilayer. PTHs take connections from layer to layer in the same manner as a double-sided PCB.

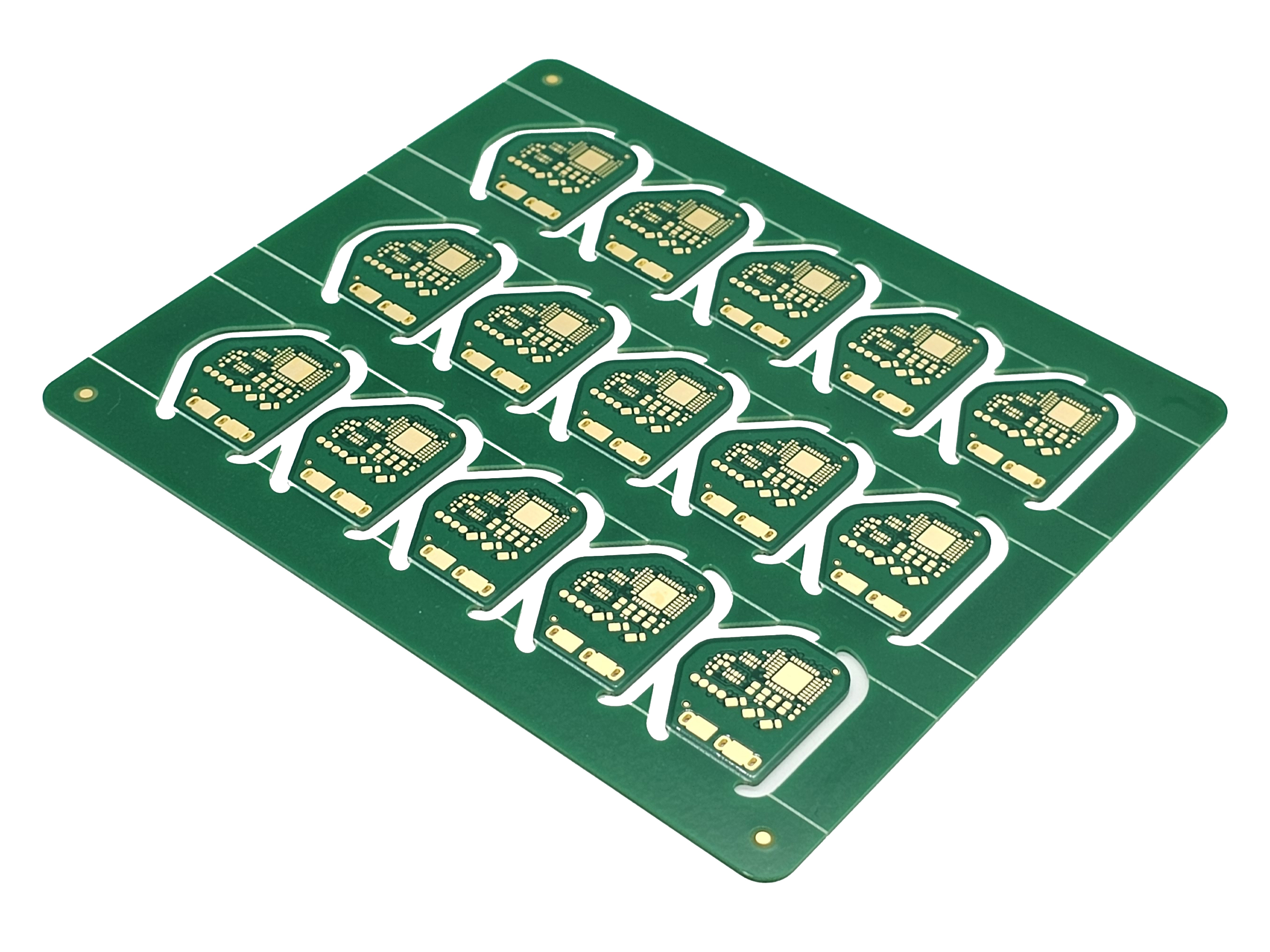

Multilayer PCB
Parameter
Product Type: Rigid PCB Layer count: 4 Board thickenss: 1.0mm Copper thickness:1.5/2/2/1.5oz Speciality: resin filled with vias, ENIG2u"
Applications
Industrial control
