Rigid-Flex Board & FPC
Rigid-Flex PCBs, by definition, are a combination of rigid part(s) joined by interconnecting flex areas where the flex material is used across the entire PCB area. The rigid parts are where there is no bending requirement. Again, PTHs take connections from layer to layer as required. Rigid-flex may also employ other technologies as required eg. HDI. Unlike the cost-effective flex PCBs, Rigid-Flex PCBs can be a bit more costly due to their intricate design. Rigid-flex PCB design can be used to eliminate or greatly reduce requirements for bulky and costly cable harnesses, in turn taking out costs and reducing assembly time. Like the pure flexible PCBs, a high volume of rigid-flex PCBs are used in aviation and space applications – and also in automotive and test equipment. Flexible PCBs, also known as Flexible Circuit boards, are a unique type of electrical circuit board that utilizes its malleable structure. Due to this PCB’s ability to be moulded to any shape, they have grown increasingly popular as technology advances. These circuit boards are usually found in portable technology such as smartphones, laptops, smartwatches, hard drives and automobiles.

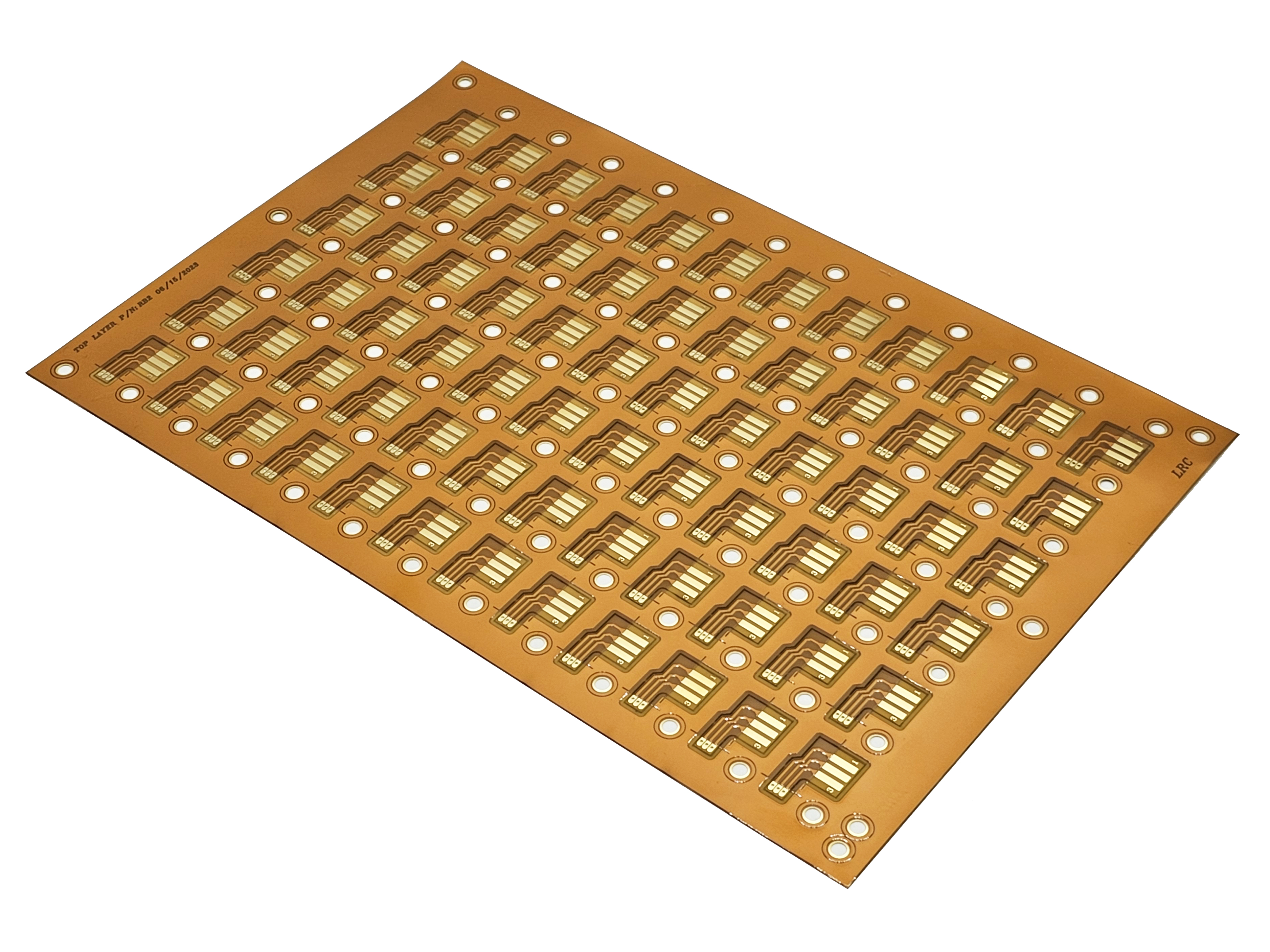

FPC
Parameter
Product Type: FPC Layer count: 2 Board thickenss: 0.155mm copper thickness: 1/1oz Speciality: THKD101020WP+LF0210
Applications
Consumer electronic
